So, the other day I was playing around with Unreal’s Landscape system, which for the most part is incredibly useful and intuitive.
One of the neat features it has is the ability to define Landscape Splines, which allows you to quickly make roads and paths that sit nicely upon the landscape you have created.
However, a major shortcoming is that there doesn’t seem to be any built-in solution for accessing the splines from outside the Landscape system. So if, for example, you wanted to have a character automatically travel along the path, you need some way to extract that spline data.
The way I accomplished this was by creating a custom actor class in C++ that lets you copy the Landscape Spline into an easily accessible Spline Component. This component can then be used for all your various pathing needs.
Here’s what the code looks like (I am using Unreal 4.27):
PathSplineActor.h
#pragma once
#include "CoreMinimal.h"
#include "GameFramework/Actor.h"
#include "Components/SplineComponent.h"
#include "LandscapeProxy.h"
#include "PathSplineActor.generated.h"
UCLASS()
class APathSplineActor : public AActor
{
GENERATED_BODY()
public:
UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category="Components")
class USplineComponent* SplineComponent;
UPROPERTY(EditAnywhere, BlueprintReadWrite, Category="Landscape")
ALandscapeProxy* Landscape;
APathSplineActor();
private:
UFUNCTION(CallInEditor, Category="Landscape")
void GenerateSpline();
};
PathSplineActor.cpp
#include "PathSplineActor.h"
#include "Components/SceneComponent.h"
#include "LandscapeSplineControlPoint.h"
// Constructor
APathSplineActor::APathSplineActor() : Super()
{
RootComponent = CreateDefaultSubobject<USceneComponent>(TEXT("Root Component"));
SplineComponent = CreateDefaultSubobject<USplineComponent>(TEXT("Path Spline"));
}
// Pull the landscape spline from the level and copy it to the spline component. Will clear the existing splinecomponent!
void APathSplineActor::GenerateSpline()
{
#if WITH_EDITOR
if (Landscape != nullptr) {
// Erase pre-existing spline points
SplineComponent->ClearSplinePoints(true);
// Get the spline data from the landscape.
ULandscapeSplinesComponent* LandscapeSpline = Landscape->SplineComponent;
// Note: ControlPoints is protected. You will need to edit LandscapeSplinesComponent.h to make it public.
TArray<ULandscapeSplineControlPoint*> LandscapeSplinePoints = LandscapeSpline->ControlPoints;
for (int i = 1; i < LandscapeSplinePoints.Num(); i++) {
// Separate out the given point
ULandscapeSplineControlPoint* LandscapePoint = LandscapeSplinePoints[i];
// Landscape spline points are stored relative to the origin of the landscape, so adjust accordingly.
FVector Point_Worldspace = LandscapePoint->Location + Landscape->GetActorLocation();
// Add a new spline point to the component
SplineComponent->AddSplinePoint(Point_Worldspace, ESplineCoordinateSpace::World, true);
}
}
#endif
}
Note that you will need to add the Landscape module to your project’s Build.cs file:
PublicDependencyModuleNames.AddRange(new string[] { "Core", "CoreUObject", "Engine", "InputCore", "Landscape" });
As well as edit Unreal’s LandscapeSplinesComponent.h to make the ControlPoints property public, instead of protected:
public:
UPROPERTY(TextExportTransient)
TArray<ULandscapeSplineControlPoint*> ControlPoints;
You can find the header file under Engine\Sources\Runtime\Landscape\Classes.
I’ll go ahead and give a rundown of how the GenerateSpline function works. First, we make sure that this function is being run from within the editor:
#if WITH_EDITOR
<The rest of our code>
#endif
This is because this function uses ALandscapeProxy, which (as I understand it) is an editor-only representation of the landscape that is not available at runtime.
After a quick check to make sure we aren’t using a null pointer, we then clear out any existing spline data that might get in the way, and get a pointer to the Landscape Spline.
if (Landscape != nullptr) {
// Erase pre-existing spline points
SplineComponent->ClearSplinePoints(true);
// Get the spline data from the landscape.
ULandscapeSplinesComponent* LandscapeSpline = Landscape->SplineComponent;
Now, we get the control points of the Landscape Spline. Recall again that getting this information requires editing the Engine code.
// Note: ControlPoints is protected. You will need to edit LandscapeSplinesComponent.h to make it public.
TArray<ULandscapeSplineControlPoint*> LandscapeSplinePoints = LandscapeSpline->ControlPoints;
Finally, for each control point, we add a corresponding point to our actor’s spline component.
for (int i = 1; i < LandscapeSplinePoints.Num(); i++) {
// Separate out the given point
ULandscapeSplineControlPoint* LandscapePoint = LandscapeSplinePoints[i];
// Landscape spline points are stored relative to the origin of the landscape, so adjust accordingly.
FVector Point_Worldspace = LandscapePoint->Location + Landscape->GetActorLocation();
// Add a new spline point to the component
SplineComponent->AddSplinePoint(Point_Worldspace, ESplineCoordinateSpace::World, true);
}
A couple things to note. First, this code doesn’t account for any potential rotation in the landscape, so if yours is rotated you might need to fiddle with it a bit. Second, this loop skips the first control point, as for whatever reason that point appears to always be at the origin of the landscape.

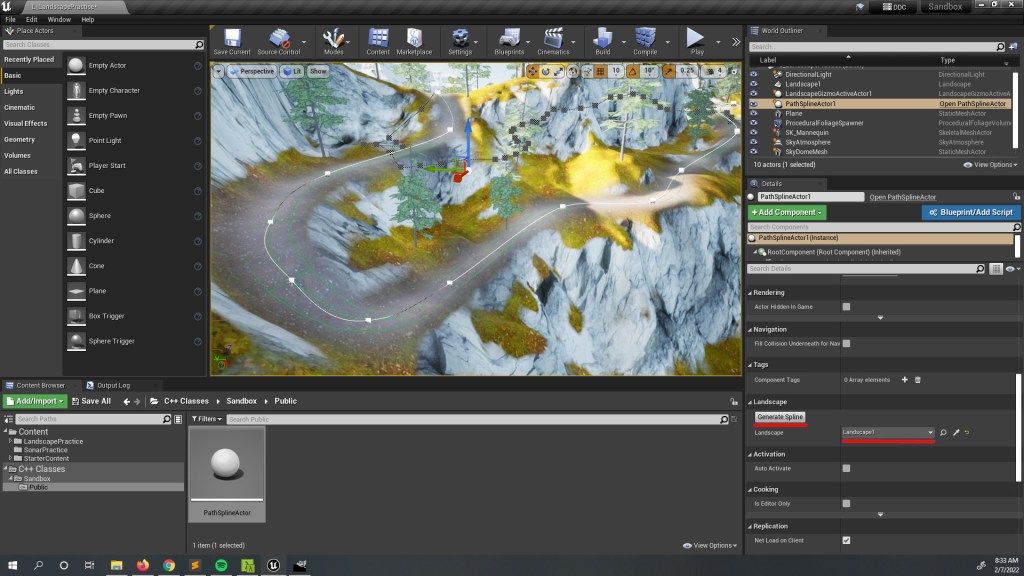

Once you’ve got the code set up, open the editor and place the actor in the level. Under the details menu, under “Landscape”, you will see a button to run the function and a dropdown where you can specify the desired landscape. Hit the button, and the spline will appear, ready to be used!

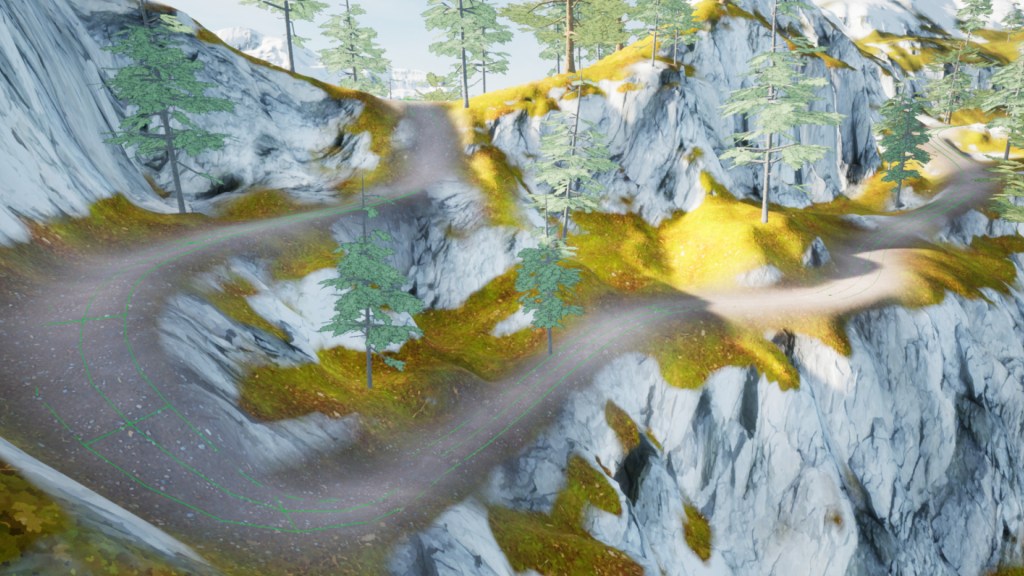

One final note: if you look closely, you’ll notice that the spline we created doesn’t perfectly follow the center of the path. I wasn’t able to find a straightforward way to fix this, so it’s up to you if you want to fiddle with it or not. If you come up with a nice solution, please let me know!
Cheers,
Harrison
Switchback Studio
Hi, I found this tutorial very helpful. But I do not like the manipulation of the Unreal Engine file, since you would have to do this on every developers machine and again after each update.
I tried to find a workardound, but it seems Epic wants me to struggle there a lot. I wanted to inherit from ULandscapeSplinesComponent or Landscape (or the proxy one of Landscape) itself to add a getter, but they are all marked as “MinimalAPI”, making it impossible to inherit at all, or (again) manipulating the read-only engine files.
Do you have any other idea? I would really like to discuss this and since you already played around with this you might be a great discussion partner here! 🙂
LikeLike
Hey, glad you liked!
Yeah, editing the engine is definitely not ideal. I did recently come across another potential solution, though judging from the comments I’m not sure if it actually works or not, I haven’t tried it myself: https://forums.unrealengine.com/t/access-landscape-spline-data-from-c/385236
Another super-roundabout option would be to whip up a quick program to automatically click through each spline point in the editor and copy the location information to a CSV file. That would be a bit wacky, but wouldn’t require changing the engine at all.
Now that I’m thinking of this again, I’m going to go ahead and submit an enhancement request for this feature, it’s kind of silly that it’s this difficult in the first place.
LikeLike
Hi, great finding! I do not really get what is going on there and we would need to adapt this, since in their solution they get the Segments not the ControlPoints. But since this iterator somehow seems to “search” for stuff, it might work out indeed. I will test it.
If this is not helping I only see the most dirty way of defining protected as public when including the SplineComponent header. But yeah, we should avoid that. 😀
LikeLike
Update: yes, I could bring it to run by combining your ideas with the post from the forum with something like this:
TWeakObjectPtr LandscapeSplinePoint;
for (TObjectIterator Itr; Itr; ++Itr)
{
LandscapeSplinePoint = TWeakObjectPtr(*Itr);
// Landscape spline points are stored relative to the origin of the landscape, so adjust accordingly.
FVector Point_Worldspace = LandscapeSplinePoint->Location + Landscape->GetActorLocation();
// Add a new spline point to the component
SplineComponent->AddSplinePoint(Point_Worldspace, ESplineCoordinateSpace::World, true);
}
BUT:
it uses the landscape spline I want, but adds A LOT more to it (behind it), I can not remember to have placed. Have to find out now why this happens but it seems the approach itself is quite good working. Even right now all I would need to do would be wiriting a function which removes everything after a certain point so it is indeed useable. Maybe you can try out in your solution as well?
LikeLike
Okay formatting is not workign here…
So the code is not useable since some symbols (e.g. “<") are gone… Maybe you can contact me via e-mail, so that I can send you the right one.
LikeLike
Glad you were able to get it working! You can email me at studio@switchbackstudio.org.
I’m a little distracted with another project at the moment, but when I have the time I’ll test it out and probably add it to the top of this post. Thanks a bunch!
